What it is

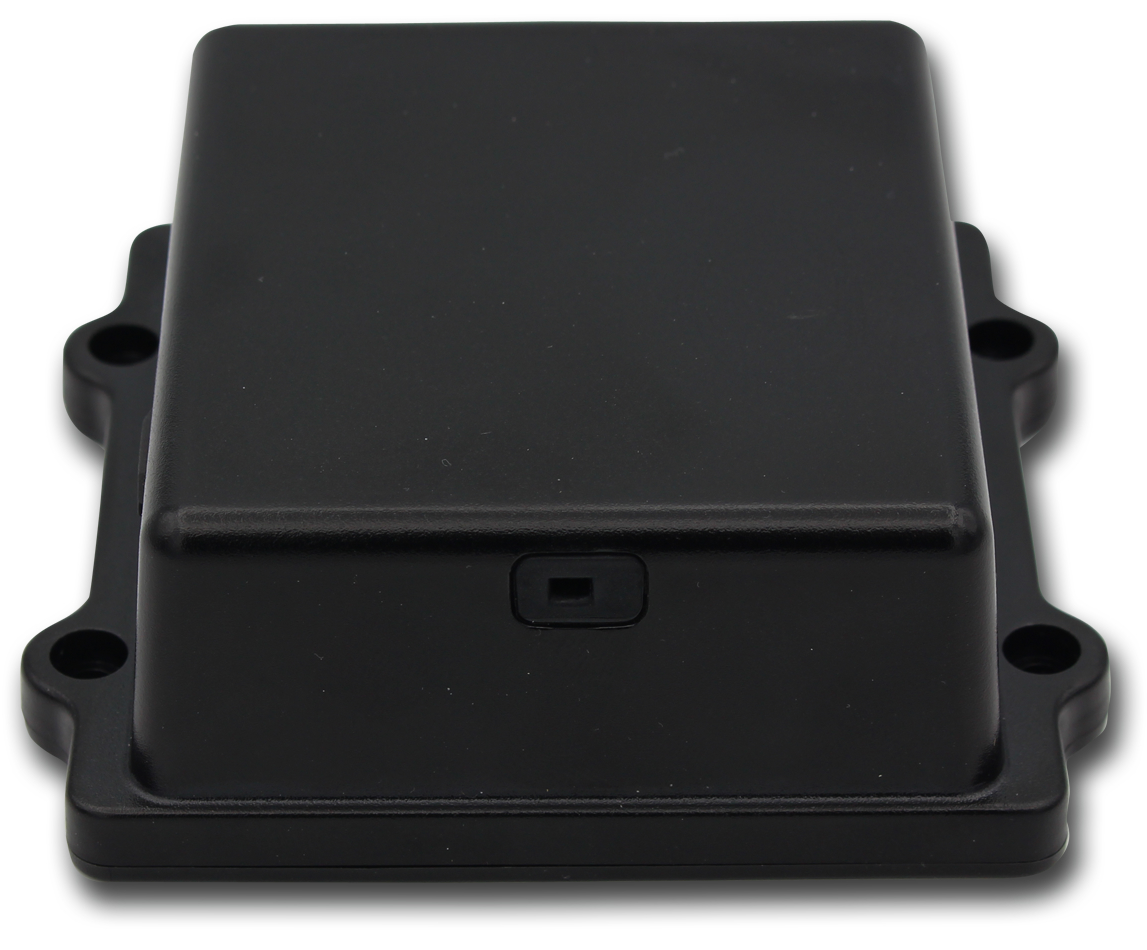

The MA1085 is a self-powered, wireless GPS asset tracker that runs on its own internal 14 Ah lithium battery. Because it needs no wiring, it can monitor anything that isn't wired for power — trailers, containers, generators, light towers, and heavy equipment — reporting its location over 4G LTE Cat-M1 for an extended period between charges.
Best for
How it operates
From location fix to live dashboard, here is what happens behind the scenes.
Acquire location
Takes a GPS fix — across GPS, GLONASS, BeiDou, Galileo and QZSS — on a schedule or when it senses movement.
Report over cellular
Each fix is sent over the 4G LTE Cat-M1 network to the GPSandTrack platform.
Conserve power
Between reports the unit sleeps to stretch battery life; motion wakes it for more frequent updates.
Confirm on demand
Press the button by the LED window and the Green GPS then Blue Cellular LEDs confirm a fix and send the current location.
Where to place it
Placement is crucial. The tracker has to connect to several GPS satellites every time it wakes, so give it as much open sky as possible — it can't be boxed in by metal.
Good placement
- +Mount on the surface of the equipment or trailer being tracked
- +Fasten to a clean surface with four #4 self-drilling screws
- +Inside a vehicle, place it under the driver or passenger seat
- +On a frame, mount close to the edge of the asset — a plastic bumper is fine
Avoid
- −Not in the engine compartment, glove box, or trunk
- −Not inside an enclosed trailer, truck bay, or sealed compartment
- −Not toward the middle of the undercarriage or in wheel wells
- −Not enclosed in metal — an all-metal or plastic/metal bumper blocks it
Installation
Most installs take just a few minutes. Here is the process step by step.
Choose an open spot
Pick a surface with a clear view of the sky — it can't be surrounded by metal.
Fasten it
Mount to a clean surface with four #4 self-drilling screws.
Activate & log in
Your login is emailed to you — sign in at gpsandfleet.io.
Send a location & verify
Press the button by the LED window and confirm the asset appears on your dashboard.
Placement is critical — the tracker must reach multiple GPS satellites each time it wakes, so it needs as much open sky as possible.
Key information
Specifications at a glance.
