What it is

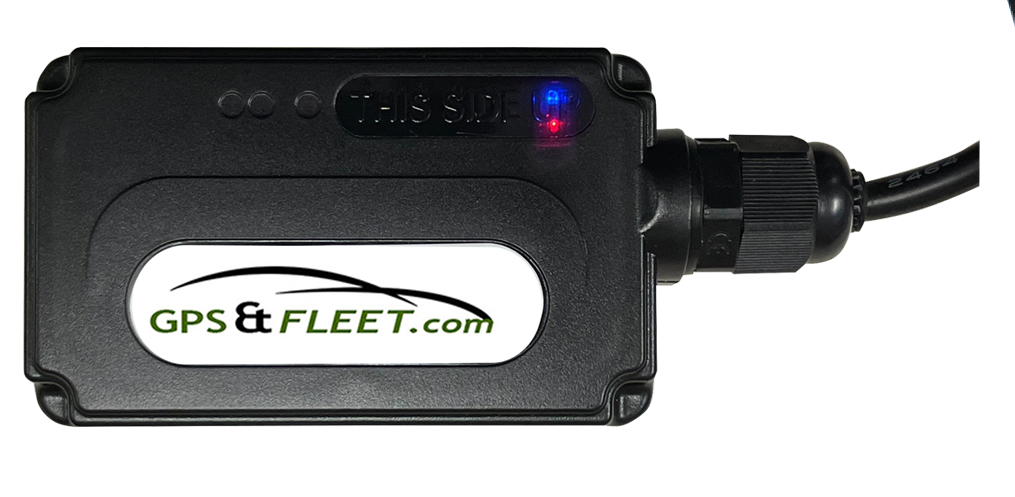

The ST4345 is a weatherproof hardwired GPS tracker from Suntech, supported on the GPSandTrack platform. Its sealed housing suits vehicles and powered or unpowered assets alike, with two wiring modes — Normal Ignition for full vehicle reporting, or Virtual Ignition for trailers and RVs that have no ignition wire.
Best for
How it operates
From location fix to live dashboard, here is what happens behind the scenes.
Wire it in
Red 12 V power, black ground, blue ignition-sense; the other wires hang loose.
Choose a mode
Normal Ignition uses all three wires for full features; Virtual Ignition wires blue+red to constant power for assets with no ignition.
Report by movement
Pre-programmed to update once daily at 6 AM Pacific, plus a movement update after 5 min and a stop update 8 min after going stationary.
Stream over LTE
The blue Cellular LED and red GPS LED show connection status.
Where to place it
The ST4345 is weatherproof, but it still needs a clear path to GPS satellites. Mount it where the signal can get through.
Good placement
- +Mount with a clear view of the sky
- +Under a trailer, fix it to the frame near the edge
- +Use Virtual Ignition mode on trailers, RVs, and unpowered assets
Avoid
- −Not under the hood
- −Not enclosed in a metal space
- −Not in enclosed trailers or truck bays, in wheel wells, or in the middle of the undercarriage
Installation
Most installs take just a few minutes. Here is the process step by step.
Choose a location
A clear view of the sky — not under the hood or enclosed in metal.
Identify the wires
Red power (12 V), black ground, blue ignition-sense.
Wire your mode
Normal = all three wires; Virtual = blue+red to constant power, black to ground.
Verify
Power up and confirm reporting; on a vehicle, run the engine for a few minutes.
Weatherproof, but it still needs GPS signal — never install it under the hood or sealed in metal. There are no updates between a movement report and a stop report.
Key information
Specifications at a glance.
